Game UI

Game UI is everything your players see on screen: health bars, score counters, menus, buttons, and pop-ups. In Renzora you build it with simple .html markup files that update live, then bring it to life with a little Lua.

You don't need to be a programmer to start. If you've ever written a web page, this will feel familiar — and if you haven't, the examples below are short enough to copy and tweak.

Two ways to build UI

Renzora gives you two friendly ways to make game UI, and you can mix them freely:

Markup — write small .html files (the renzora_ember system). Best for HUDs and menus you want to lay out by hand. Save the file and the UI updates instantly while the game is running.
Canvas widgets — drag ready-made widgets (buttons, sliders, bars) right into your scene in the editor. Best if you'd rather click than type.

Most makers start with markup, so we'll cover that first.

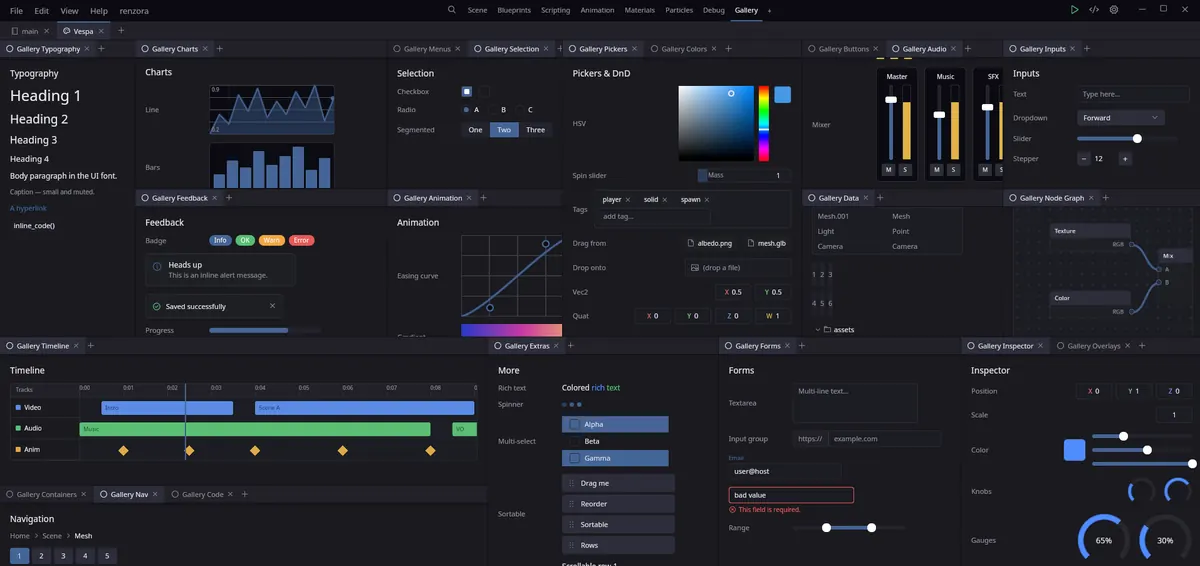

The screenshot below shows the kinds of building blocks you get out of the box — headings, charts, sliders, color pickers, gauges, timelines, and more.

The renzora_ember UI gallery showing built-in components: typography, charts, sliders, color pickers, forms, gauges, and timelines

Your first UI file

A UI file is just an .html document with one <template> at the top. Each tag becomes one box on screen. Here's a tiny HUD with a title and a red health bar:

<!-- ui/hud.html -->
<template>
    <node
        position="absolute" top="24px" left="24px"
        flex_direction="column" row_gap="8px"
        padding="16px" width="280px"
        background="#11151C" border_radius="12px"
    >
        <text font_size="18" font_color="#FFFFFF">Vitals</text>
        <node width="100%" height="14px" background="#1B2233" border_radius="999px">
            <node name="health_fill" width="72%" height="100%" background="#E74C3C" border_radius="999px" />
        </node>
    </node>
</template>

Save it, and the panel appears. Change a color or a width, save again, and it updates without restarting. That fast loop is the whole point of markup.

Selecting a UI entity opens its .html in the built-in code editor, and pressing Ctrl+S there hot-reloads every canvas using that template right away — no need to re-run the game. (Editing the same attributes through the inspector updates the entity live without a rebuild, so your selection stays put.)

The tags you'll use

A handful of tags cover almost everything:

Tag	What it's for
`<node>`	A box — your main layout building block
`<text>`	Words on screen
`<image>`	A picture (`src="..."`)
`<button>`	Something the player can click
`<input>`	A text field the player types into
`<icon name="...">`	A small icon, e.g. `<icon name="check" />`

There are a few more tags for repeating lists and reusing components. See the Scripting API for the full list.

Making the UI show live values

The best part: your UI can show numbers that change as the game runs. Wrap a value in double braces and it re-reads every frame:

<text font_size="14" font_color="#FFFFFF">Score: {{ Player.score }}</text>
<text font_size="12" font_color="#8A93A2">Lives: {{ Player.lives }}</text>

What goes inside the braces? A few common forms:

{{ score }} — a variable from the script on the same entity as this UI.
{{ Player.score }} — a variable on the entity you named Player.
{{ Name }} — the entity's name.

So when your Lua script changes score, the text on screen changes too. You don't have to do anything else.

Show or hide things

Use show= with a condition to flash a warning or reveal a menu only when it matters:

<node show="{{ Player.Health.current < 25 }}" background="#E74C3C" />
<text show='{{ Player.team == "red" }}'>RED TEAM</text>

Conditions understand and, or, not, comparisons (< > <= >= == !=), and parentheses.

Buttons that do something

To make a button run code, give it an on_press name:

<button name="btn_play"
        padding="14px" background="#1B1F27" border_radius="8px"
        on_press="press_play" on_enter="hover_play">
    <text font_color="#FFFFFF">Play</text>
</button>

Then catch that name in your Lua script's on_ui function:

function on_ui(name, args, entity)
    if name == "press_play" then
        start_game()
    elseif name == "hover_play" then
        play_sound("audio/menu_button.mp3", 0.5)
    end
end

on_press runs on click; on_enter and on_exit run when the mouse moves over or away. UI event handling like this is Lua-only.

Gauges, bars, and charts

Need a circular gauge, a bar chart, or a speedometer? Add vector="..." to a node and Renzora draws it for you:

`vector=`	Draws
`gauge` (or `arc`, `ring`)	A circular gauge
`bars`	A bar chart
`line` (or `chart`)	A line chart
`wave`	A waveform
`speedometer` (or `dial`)	A full dial with ticks, labels, and a needle

<node vector="gauge" width="160px" height="160px"
      value="{{ Player.fuel }}" min="0" max="100"
      color="#4C8BF5" readout="{{ Player.fuel }}" />

The value, data, and readout fields accept live {{ }} bindings, so a fuel gauge or speedometer tracks your game in real time. For the full list of widget options, see the Scripting API.

Showing and hiding UI from a script

Your script spawns and hides UI with action(...). The common verbs:

Verb	What it does
`hui_spawn`	Show a UI file, e.g. `{ template = "ui/hud.html" }`
`hui_despawn`	Remove a UI file
`hui_hide` / `hui_show`	Hide or show a named piece of UI
`quit`	Close the game

function on_ready()
    -- Show the HUD as soon as this entity wakes up
    action("hui_spawn", { template = "ui/hud.html" })
end

function open_pause_menu()
    action("hui_hide",  { name = "hud_root" })
    action("hui_spawn", { template = "ui/pause_menu.html" })
end

These action() verbs are Lua-only.

Building UI by dragging in the editor

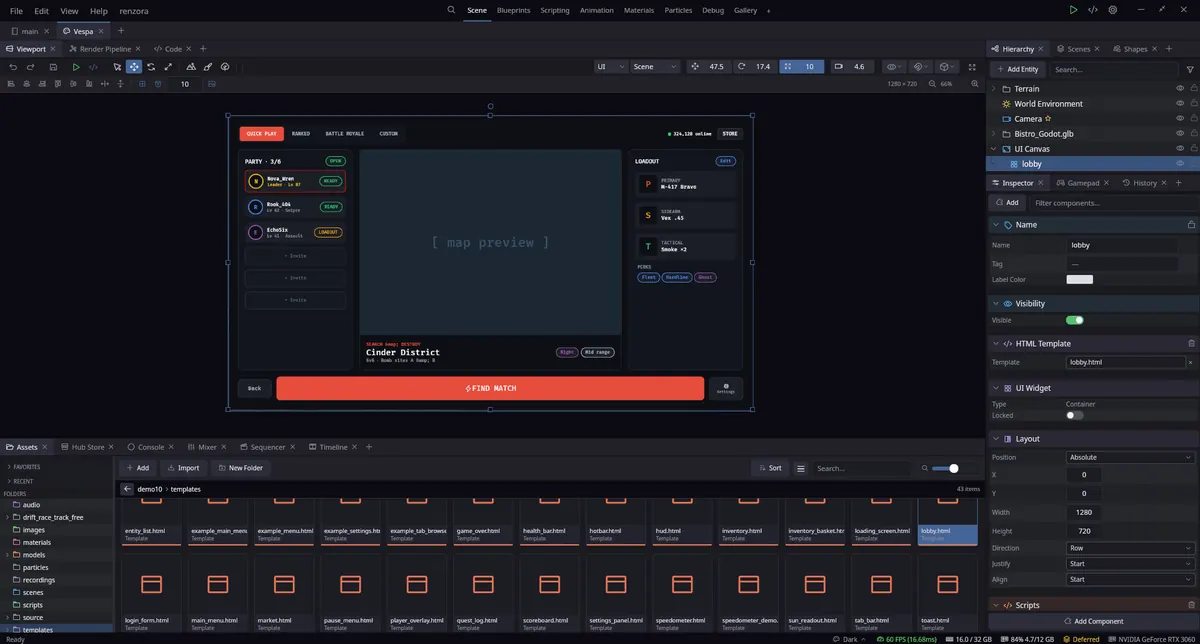

Prefer clicking to typing? The second path lets you drop ready-made widgets straight into your scene and arrange them in the viewport. Below, a match screen is being assembled from widget cards on the left, with their colors and values edited on the right — and a big "START MATCH" button laid out in the center.

The Renzora editor building a game-UI screen from drag-in widgets, with a START MATCH button and widget settings panels

Each widget is an entity that lives in your scene and saves with it, so it's there next time you open the project. There are widgets for the usual things — buttons, sliders, checkboxes, dropdowns, text inputs, progress and health bars, tooltips, modal pop-ups, and basic shapes.

Controlling those widgets from a script

Widgets respond to a set of ui_* verbs. You target a widget by the name you gave it in the editor:

action("ui_set_text",   { name = "score_label", text = "Score: " .. score })
action("ui_set_slider", { name = "volume", value = 0.5 })
action("ui_set_theme",  { theme = "light" })

For anything without a dedicated verb (like driving a health bar's fill), use set_on:

-- Fill a bar named "health_fill" from 0.0 to 1.0
set_on("health_fill", "UiBarFill.value", current_hp / max_hp)

The built-in themes are dark (default), light, and high_contrast. Color values in ui_set_color are floats from 0.0 to 1.0, not 0–255. The full verb list lives in the Lua reference.

Putting it together: a scripted HUD

Here's a small, complete script that spawns a HUD, keeps the health bar filled, and switches to a game-over screen when health hits zero:

-- hud.lua — attach this to one entity in the scene
function props()
    return {
        max_health = { value = 100, hint = "Player max HP" },
        _hp        = { value = 100, hint = "Current HP" },
        _score     = { value = 0,   hint = "Score" },
    }
end

function on_ready()
    action("hui_spawn", { template = "ui/hud.html" })
    _hp = max_health
    _score = 0
end

function on_update()
    -- ui/hud.html shows {{ _hp }} and {{ _score }} directly,
    -- and we size the health bar from the current fraction.
    set_on("health_fill", "UiBarFill.value", _hp / max_health)

    if _hp <= 0 then
        action("hui_despawn", { template = "ui/hud.html" })
        action("hui_spawn",   { template = "ui/game_over.html" })
    end
end

-- Buttons in the markup route here by their on_press="..." name
function on_ui(name, args, entity)
    if name == "restart" then
        _hp = max_health
        _score = 0
    end
end

UI scripting (action(), set_on/get_on, and on_ui) is Lua-only — write your UI logic in .lua. Rhai scripts can still feed values into {{ }} bindings, but they can't call the UI verbs.
