Inspector

The Inspector is where you read and tweak everything about the object you have selected — its position, its colors, its lights, its scripts, and more. Click something in your scene and all of its settings show up here, ready to edit.

This page covers the everyday basics. When you want the deep technical reference, the Scripting API and the Inspector Fields guides have the full story.

Pick something to inspect

The Inspector always follows your selection. Click an object in the viewport, or click its name in the Hierarchy, and the Inspector instantly rebuilds to show that object.

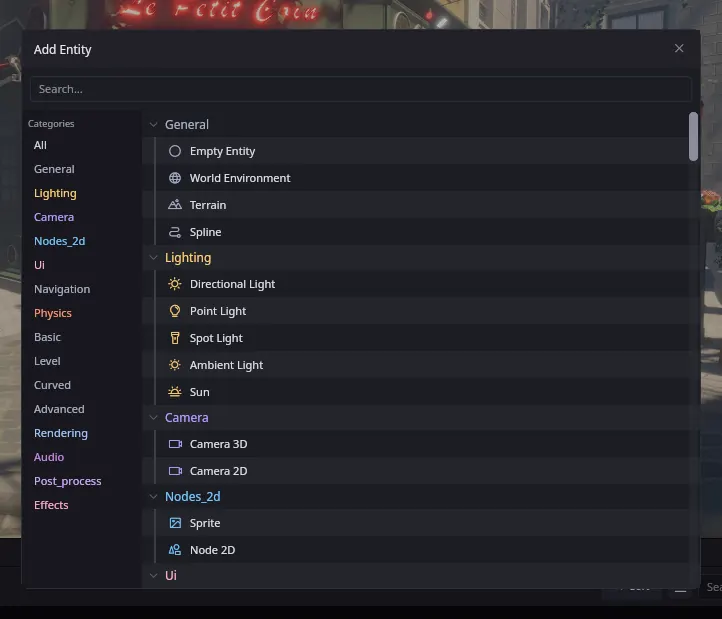

Don't have anything to inspect yet? Open the Add Entity menu to drop a new object into your scene — a light, a camera, some terrain, an empty object, and so on. Once it's in the scene, select it and it appears in the Inspector.

Want the Inspector to stay on one object while you click around elsewhere? Use the lock toggle in a section header. It pins the Inspector to the current object until you unlock it.

Reading the panel

Each object is made of components — small bundles of settings like Transform (position/rotation/scale), Directional Light, or Visibility. The Inspector shows one collapsible section per component.

In a section header you'll find:

• A caret to fold the section open or closed.
• An icon and the component's name.
• An on/off toggle (on components that support it) so you can switch a feature off without deleting it.
• A trash button to remove the component entirely.

Inside each section are the editable fields. The most-used components are always pinned to the top in a fixed order — Name, Transform, then Scripts and Material when present — so the things you reach for most are right where you expect them, no matter what else is on the object. Every other component follows below.

To focus a single component, use the component filter. It comes in two styles, switched in Settings → Interface → Inspector → Component Filter:

• Dropdown (default) — a single dropdown in the top bar listing the components on the object; pick one to filter, or All components to clear it.
• Vertical Menu — one icon button per component down the left edge, plus an All entry at the top. Hover a button for a tooltip naming the component (the bubble stays on-screen, flipping to the other side or sliding up/down near an edge). Click to filter the panel to just that component; click it again (or All) to show everything. The active button is highlighted.

At the very top is a filter box — start typing a component name to hide everything else — and an expand/collapse-all button on the right. Click it once to open every section, again to collapse them all; it resets when you select a different object. (The bottom of the list has an Add Component button.)

Which sections start open

By default, only the Name, Transform, and Scripts sections start expanded when you select something — everything else starts collapsed so a busy object stays scannable. You can change this in Settings → Interface → Inspector → Default Expand:

• Essentials Only (default) — Name, Transform, and Scripts open; the rest closed.
• All Open — every section starts expanded.
• All Closed — every section starts collapsed.

This sets the starting state each time the Inspector rebuilds for a new selection — you can still fold any section by hand, and the expand/collapse-all button overrides it for the current object.

Your edits apply live. Drag a value or flip a toggle and the change takes effect immediately — no Apply button, no waiting.

Editing fields

Different settings get different controls, picked automatically to match the value:

• Numbers — drag left/right to scrub the value, or click to type an exact number.
• X / Y / Z — three colored drag boxes for things like position and rotation.
• Toggles — a simple on/off switch.
• Colors — a color picker (with an alpha option where it makes sense).
• Text — a single-line text box.
• Dropdowns — pick from a fixed list of choices.
• Asset slots — drag a file from the Asset Browser onto the slot (it only accepts the right file types).

Every editable field has a small reset button (the circular ↺ arrow) just to its right. Click it to snap that field back to its default value — 0 for numbers, off for toggles, empty for text, white for colors, and so on. Action buttons and read-only fields don't show one, since there's nothing to reset.

Adding and removing components

• Add — click Add Component (top or bottom of the panel) to open a list of everything you can add, grouped by category. Type to filter.
• Remove — click the trash button in a component's header.
• Turn off — flip the header toggle to disable a component without removing it.

Text & fonts

Any entity with text exposes two text sections:

• Text Font — pick the Font from a dropdown that auto-populates from your project's fonts/ folder (drop a .ttf/.otf there and it appears) plus the built-in faces. Set the Size, and — for variable fonts — the Weight (100–900), Width (condensed ↔ expanded), Spacing (letter spacing, in px), and Line height (× font size).
• Rich Text — build styled spans: multiple runs of text on one line, each with its own text and color. Click Add span to append a run, edit its text and R/G/B inline, and use the trash button to remove it. Spans render in order after the base text, so you can mix colors and weights in a single label.

Fonts you use are saved into the scene and packed into the exported game (only the fonts actually referenced are bundled — see Exporting).

Script properties

Attaching a script is one of the most useful things you can do in the Inspector. Drag a .lua or .rhai file from the Asset Browser onto the Drop to add script target, or click Add Script to pick one from your project. A Script section then appears.

Any variable your script declares in its props() function shows up as an editable field — so you can tune gameplay values (speed, jump height, color, a team name) right in the Inspector, with no code changes.

-- player.lua
function props()
    return {
        speed     = { value = 5.0, hint = "Walk speed (units/s)" },
        can_jump  = { value = true },
        team      = { value = "red" },
    }
end

Each entry just needs a value (which sets both the default and the field type) and, optionally, a hint for a helpful tooltip. Numbers become draggable fields, true/false becomes a toggle, text becomes a text box, and so on.

props() works in both Lua and Rhai. Whatever you set in the Inspector is saved per-object and feeds straight back into the running script.

See Scripting Overview to get started writing scripts, and the Scripting API for the full list of functions you can call.

For programmers: custom components

Made your own Bevy component and want it to show up here automatically? Add #[derive(Inspectable)] and register it — Renzora generates the field rows for you.

use bevy::prelude::*;
use renzora::{AppEditorExt, Inspectable};

#[derive(Component, Default, Reflect, Inspectable)]
#[inspectable(name = "Health", icon = "HEART", category = "gameplay")]
pub struct Health {
    #[field(speed = 1.0, min = 0.0, max = 10000.0)]
    pub current: f32,
    pub max: f32,
}

Then call app.register_inspectable::<Health>(); from your plugin. The contract types live in the renzora crate behind its editor feature (engine built on Bevy 0.19).

That's the short version. For per-field attributes, custom widgets, and fully native drawers, see Inspector Fields.
